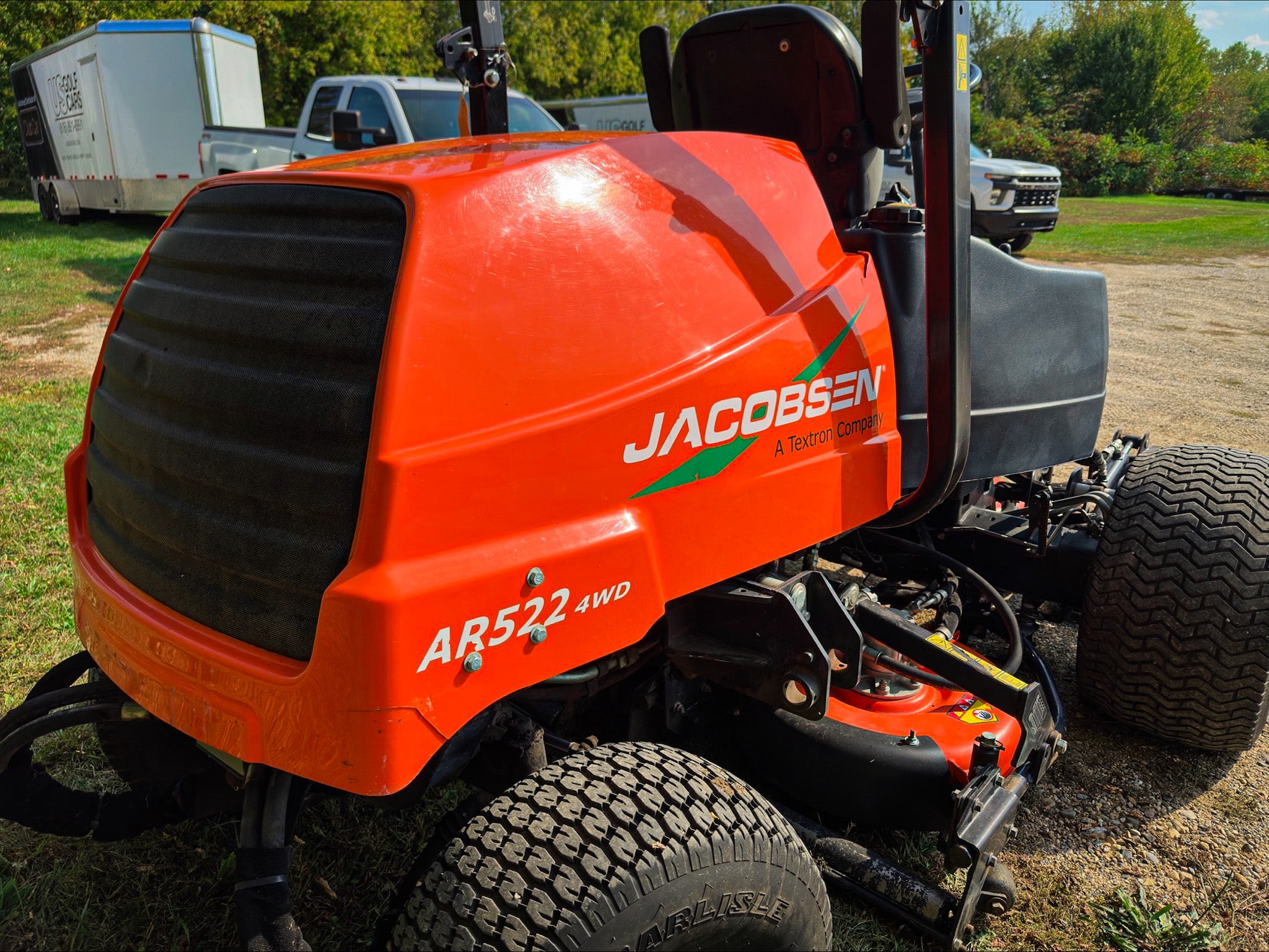

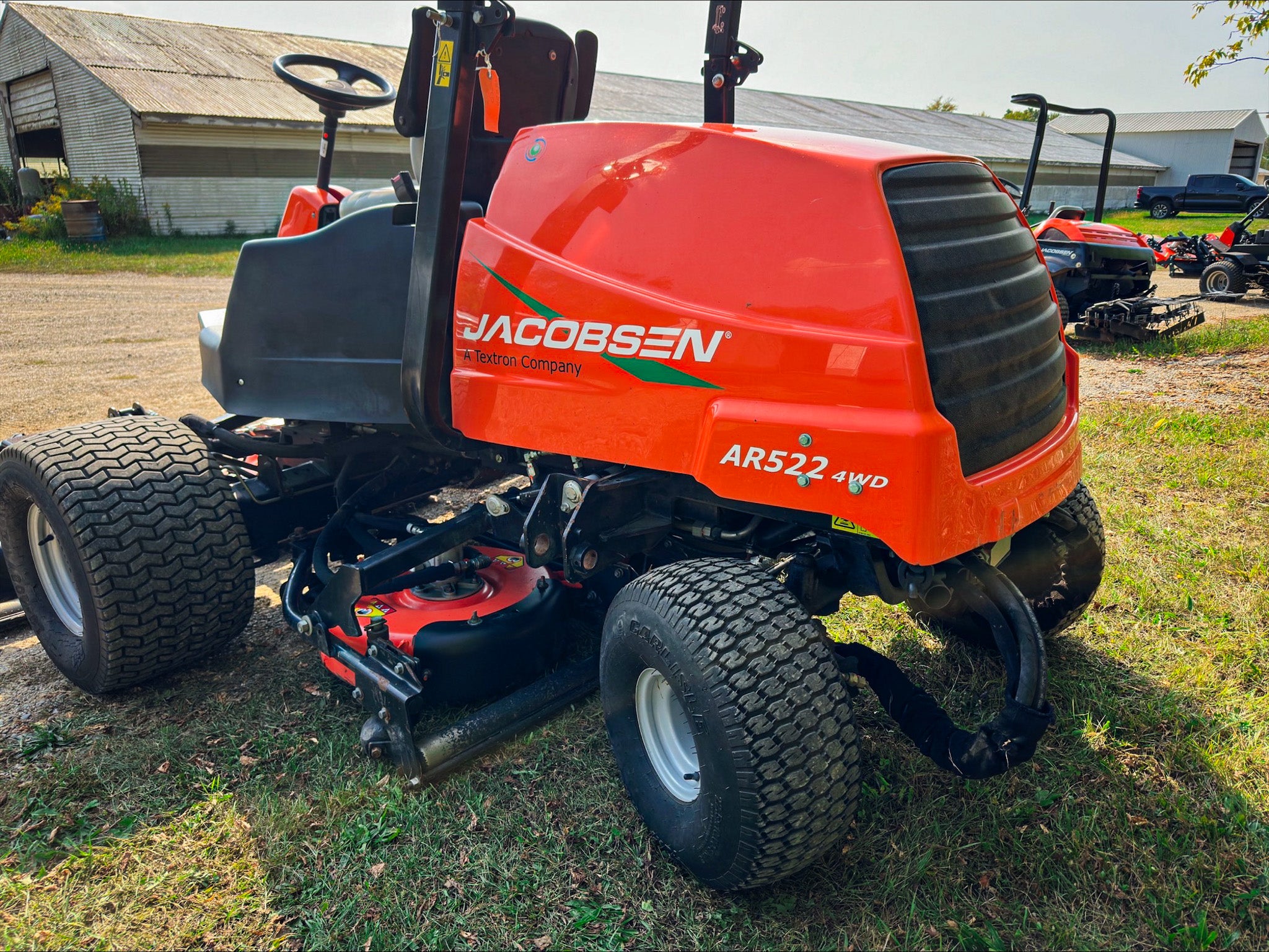

Jacobsen AR522 4WD Rotary Mower - Diesel
- Regular price
- $32,000.00
- Sale price
- $32,000.00
- Regular price
-
SKU: 52615
OPTIONS
Unit #: 52615
SN: 7006201
- 1,710 Hours
- 59HP Kubota Diesel Engine
- 5 Deck Rotary
DOES INCLUDE FREIGHT + PREP FEES
DOES NOT INCLUDE DELIVERY OR APPLICABLE 6% MI SALES TAX
AVAILABLE FOR SALE IN-STORE ONLY | GRAND RAPIDS, MI
Specifications
Mower Cutting Width
90 in (≈ 2.3 m)
Mower Height of Cut
0.75 – 5.25 in (≈ 19 – 133 mm) in 0.25 in (6 mm) increments
Cutting Capacity
Approx. 6 – 7 acres/hour depending on conditions
Cutting Units
5 × TrimTek™ rotary decks, 22 in (≈ 55.9 cm) each
Blades
Combo blades (~22.4 in / 56.8 cm), heat-treated alloy steel
Deck Spindles
Sealed bearings, 1 in (2.54 cm) shafts
Engine
Kubota V2403-M, 4-cylinder liquid-cooled diesel
Rated Horsepower
48.9 hp (≈ 36.5 kW) @ 2,600 rpm
Displacement
2,434 cc (≈ 148.5 cu in)
Fuel Capacity
17 US gal (≈ 64.4 L)
Fuel Consumption
~ 1.09 gal/hr (≈ 4.13 L/hr) at 40 % load
Electrical System
12 V, key start with alternator charging system
Traction Drive
SureTrac™ 4WD parallel cross-series hydrostatic system
Drive Motors
Four individual wheel motors
Steering
Rear-wheel hydrostatic power steering with tilt wheel
Hydraulic System Capacity
14 US gal (≈ 53 L)
Brakes
Dynamic braking through traction system
Parking Brake
Wet, multi-disc brakes in front wheel motors – electrically engaged
Tires
Front: 26.5 × 14-12 turf (6-ply) Rear: 22.5 × 10-8 turf (4-ply)
Weight
3,691 – 3,851 lb (≈ 1,674 – 1,747 kg)
Length
130 in (≈ 3.30 m)
Width
98 in (≈ 2.49 m)
