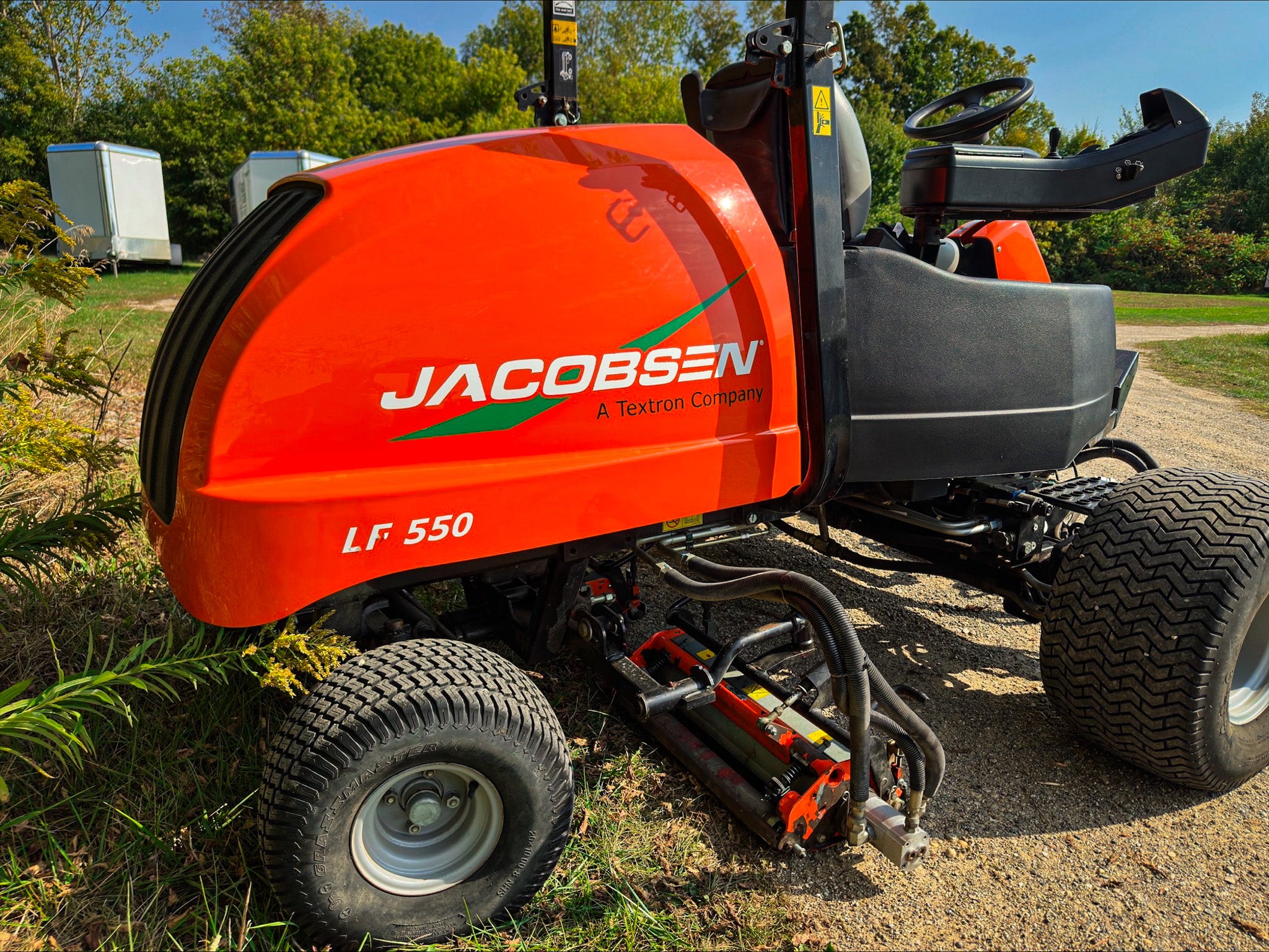

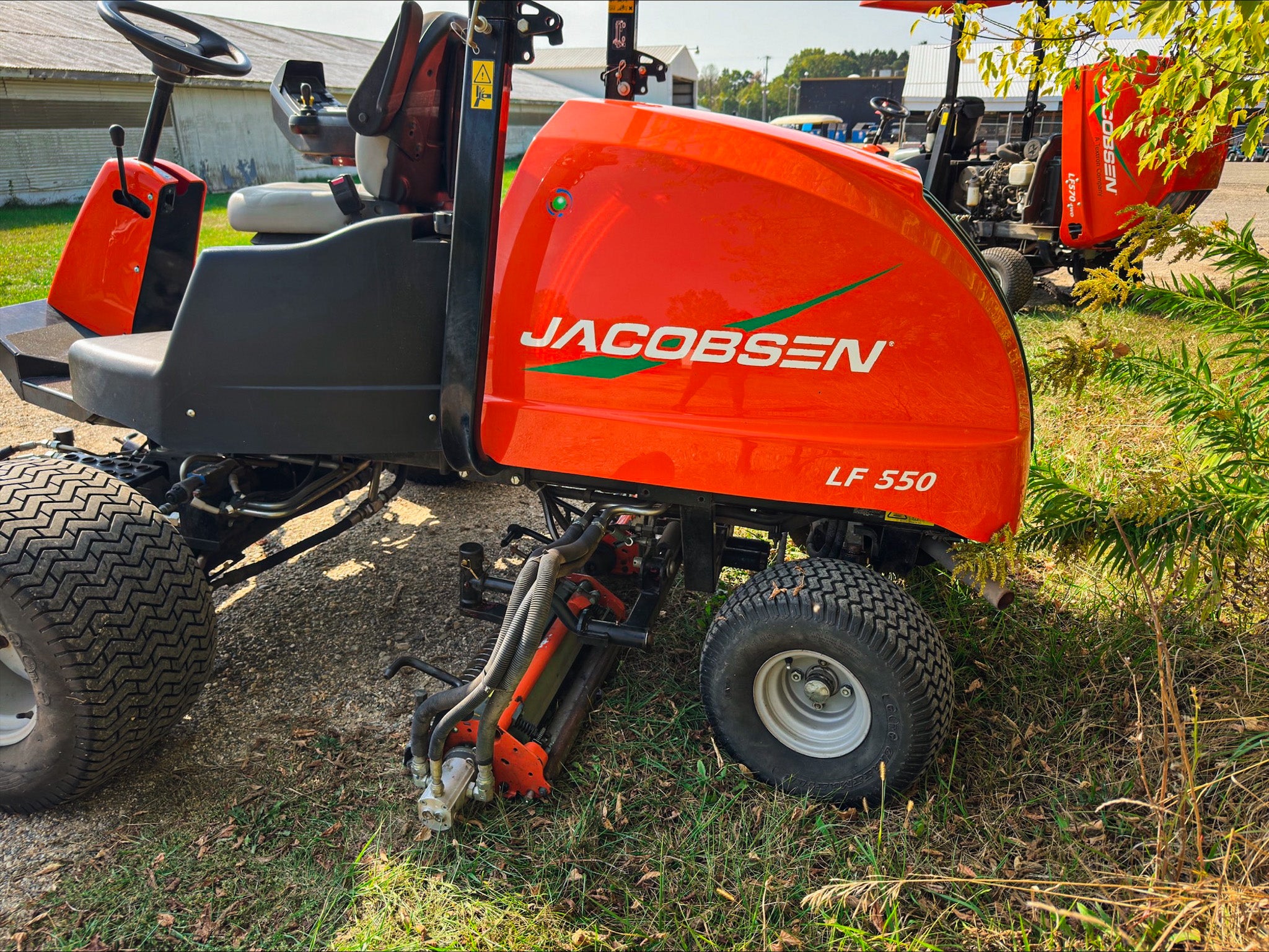

Jacobsen LF550 Fairway Mower - Diesel
- Regular price
- $42,500.00
- Sale price
- $42,500.00
- Regular price
-
SKU: 38517
OPTIONS
Unit #: 38517
SN: 1655
- 1,186 Hours
- Hand Throttle
- 50HP Kubota Diesel Engine
- 7 Bladed Reels
- 50% Reel Stock
- .3" Grooved Front Rollers
- Serviced 2025
DOES INCLUDE FREIGHT + PREP FEES
DOES NOT INCLUDE DELIVERY OR APPLICABLE 6% MI SALES TAX
AVAILABLE FOR SALE IN-STORE ONLY | GRAND RAPIDS, MI
Specifications
Mower Cutting Width
100" (2.54 m)
Mower Height of Cut
0.375 - 0.75" (9.5 - 19 mm), Available high-cut kit raises cutting height to 1.187" (30.2 mm)
Cutting Reels
5 x 5" (12.7 cm) diameter x 22" (55.9 cm)
Mower Engine
Kubota® 37.5 HP (28 kW) diesel, Kubota® 50.2 HP (37.4 kW) diesel
Cutting Capacity
Up to 8 acres (3.24 hectares) per hr at 8 mph (12.9 kph) (no overlaps or stops)
Fuel/Battery Capacity (+Run Time)
37.5 HP - 1.08 GPH (4.08 LPH)* , 50 HP - 1.4 GPH (5.3 LPH)* (*assuming 50% load)
Number and Size
7 or 9 heavy section fairway blades.
Blade Material
Hardened, high manganese carbon steel
Cutting Unit Lift

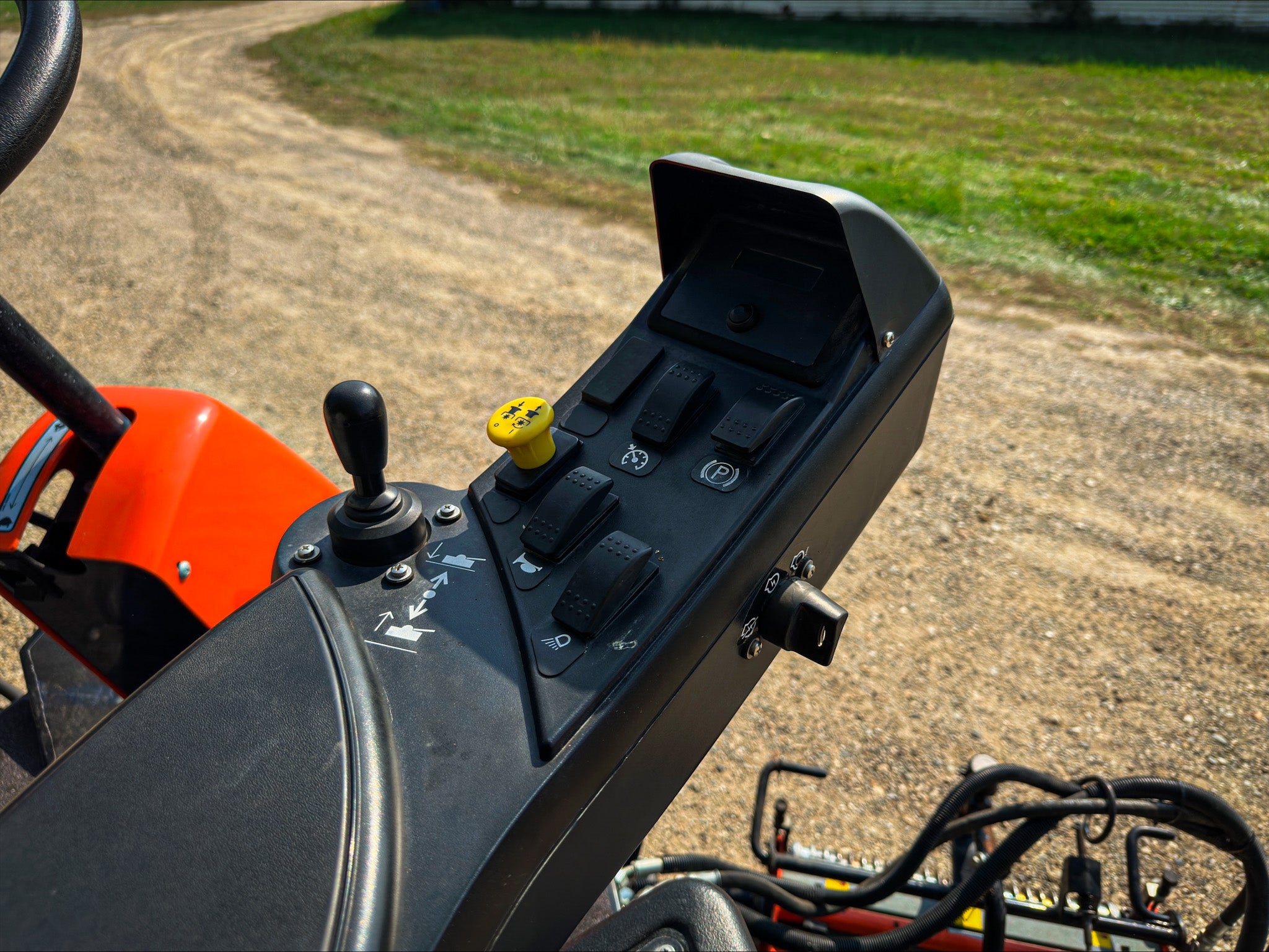

Hand operated, joystick controlled hydraulic lift system, one-touch lift/lower control for all reels
Traction Drive
Variable displacement, electronically controlled hydrostatic drive; 4WD models: SureTrac™ parallel-cross-series traction system, four high-torque wheel motors, 2WD in reverse.
Reel Drive
Fixed displacement hydraulic motors with FlashAttach quick disconnect coupled reel motors. Standard on-board backlapping.
Hydraulic System
14 gal. (53 L) capacity; hydraulic tank oil level monitor and horn alarm; GreensCare biodegradable fluid; full-flow, 10-micron filter. Side-by-side radiator/hydraulic oil cooler.
Service Brakes
Dynamic braking through traction system
Parking Brakes
Automatic, wet parking brakes integrated in front wheel motors.
Steering
Rear wheel, hydrostatic power steering with tilt adjustable steering wheel.
Weight
2WD: 3,036 lbs. (1,377 kg), 4WD: 3,367 lbs. (1,527 kg), 2WD High HP: 3,282 lbs. (1,489 kg), 4WD High HP: 3,613 lbs. (1,639 kg)
Length (less catchers)
108" (2.74 m)
Overall Height (including ROPS)
88" (2.23 m)
Wheel Base
58" (1.5 m)
Transport Width
87" (2.2 m)
Working Width
115" (2.92 m)
