Jacobsen LF570 4WD Fairway Mower - Diesel

Regular price: $42,500.00
Sale price: $42,500.00
Regular price

SKU: 52572

OPTIONS

Unit #: 52572

SN: 7005956

1,577 Hours
11 Bladed Reels
75% Reel Stock
3" Grooved Front Rollers
Cool Top Canopy
Serviced 2025

DOES INCLUDE FREIGHT + PREP FEES

DOES NOT INCLUDE DELIVERY OR APPLICABLE 6% MI SALES TAX

AVAILABLE FOR SALE IN-STORE ONLY | GRAND RAPIDS, MI

Cut Customization

With an adjustable cutting height from 0.375- to 1.125-inches (9.5 to 28.6 mm), as well as an optional high-cut kit (1.56-inches or 39.6 mm), the LF570 provides the customization needed for the perfect cut.

Wide Cutting Width

The LF570 is equipped with Jacobsen's high-capacity cutting units and a cutting width of 100-inches (2.54 meters), perfect for mowing large areas efficiently.

Operator Comfort

This machine includes a tilt-adjustable steering wheel and hydrostatic power steering for enhanced operator comfort.

Specifications

Key Attributes

Reels & Blades

Traction & Brakes

Weight & Dimensions

Mower Cutting Width

100" (2.54 m)

Mower Height of Cut

0.375 - 1.125" (9.5 - 28.5 mm), Available high-cut kit raises cutting height to 1.563" (39.7 mm)

Cutting Reels

5 x 7" (17.8 cm) diameter x 22" (55.9 cm)

Mower Engine

Kubota® 37.5 HP (28 kW) diesel, Kubota® 50.2 HP (37.4 kW) diesel

Cutting Capacity

Up to 8 acres (3.24 hectares) per hr at 8 mph (12.9 kph) (no overlaps or stops)

Fuel/Battery Capacity (+Run Time)

37.5 HP - 1.08 GPH (4.08 LPH)*, 50 HP - 1.4 GPH (5.3 LPH)* (*assuming 50% load)

Number and Size

9 or 11 heavy section fairway blades

Blade Material

Hardened, high manganese carbon steel

Cutting Unit Lift

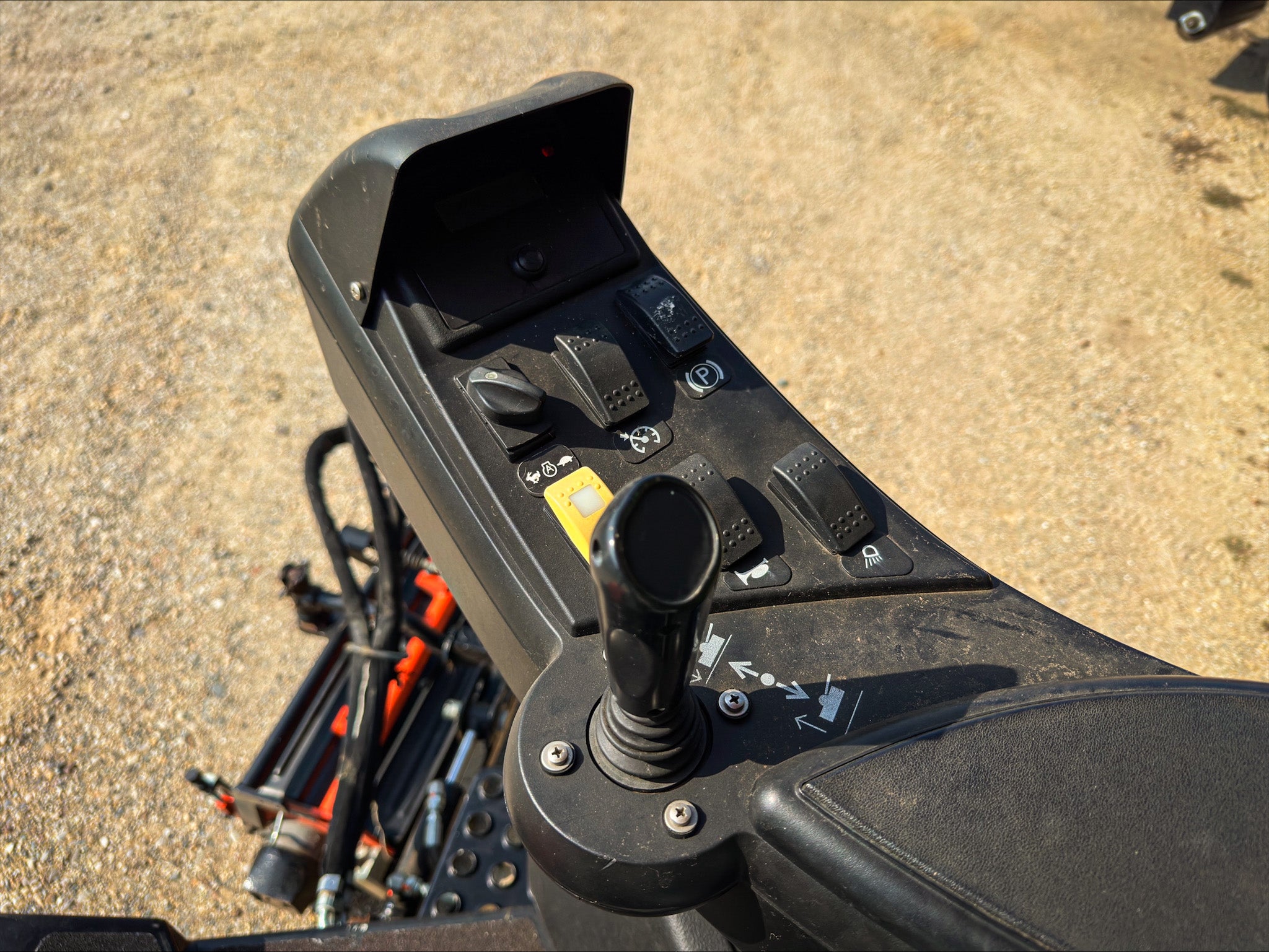

Hand operated, joystick controlled hydraulic lift system, one-touch lift/lower control for all reels

Traction Drive

Variable displacement, electronically controlled hydrostatic drive; 4WD models: SureTrac™ parallel-cross-series traction system, four high-torque wheel motors, 2WD in reverse

Reel Drive

Fixed displacement hydraulic motors with FlashAttach quick disconnect coupled reel motors. Standard on-board backlapping.

Hydraulic System

14 gal. (53 L) capacity; hydraulic tank oil level monitor and horn alarm; GreensCare biodegradable fluid; full-flow, 10-micron filter. Side-by-side radiator/hydraulic oil cooler

Service Brakes

Dynamic braking through traction system

Parking Brakes

Semi-automatic, wet parking brakes integrated in front wheel motors

Steering

Rear wheel, hydrostatic power steering with tilt adjustable steering wheel

Weight

2WD: 3,221 lbs. (1,461 kg), 4WD: 3,552 lbs. (1,611 kg), 2WD High HP: 3,467 lbs. (1,573 kg), 4WD High HP: 3,798 lbs. (1,723 kg)

Length (less catchers)

108" (2.74 m)

Overall Height (including ROPS)

88" (2.23 m)

Wheel Base

58" (1.5 m)

Transport Width

87" (2.2 m)

Working Width

115" (2.92 m)
